Creating Overlay Image and Running Text in Multiple Output Streaming with NGINX RTMP

Creating Multiple Output with No Filter

Creating multiple output without implement filtering can be done by using command

syntax:
           ffmpeg -i input1 -i input2 \
               -acodec … -vcodec … output1 \
               -acodec … -vcodec … output2 \
               -acodec … -vcodec … output3

Pic 1.  Multiple Outputs

Here is an example to create several different outputs out HD, VGA and QVGA resolution at the same time with one command

syntax:
           ffmpeg -i input \
               -s 1280x720 -acodec … -vcodec … output1 \
               -s 640x480  -acodec … -vcodec … output2 \
               -s 320x240  -acodec … -vcodec … output3


Creating Multiple Output with Same Filter to All Output

To implement same filter in multiple output can be done by using -filter_complex with split filter.
Command below to split=3 means split to three streams

syntax:
         ffmpeg -i input -filter_complex '[0:v]yadif,split=3[out1][out2][out3]' \
                           -map '[out1]' -s 1280x720 -acodec … -vcodec … output1 \
                           -map '[out2]' -s 640x480  -acodec … -vcodec … output2 \
                           -map '[out3]' -s 320x240  -acodec … -vcodec … output3

Creating Multiple Output with Specific Filter per each Output

To create multiple output with specific filter per each output can be done by using  -filter_complex with split filter, but split goes to input directly.

Below syntax to encode video to three different output at the same time, but boxblur will impact to output1, negate will impact to output2 and yadif will impact to output3.

syntax:

      ffmpeg -i input -filter_complex \
         '[0:v]split=3[in1][in2][in3];[in1]boxblur[out1];\

          [in2]negate[out2];[in3]yadif[out3]' \
        -map '[out1]' -acodec … -vcodec … output1 \
        -map '[out2]' -acodec … -vcodec … output2 \
        -map '[out3]' -acodec … -vcodec … output3

Creating Overlay Image and Running Text with Multiple Output

Here is my own experiment to implement Overlay Image and Running Text in Streaming with multiple resolution and multiple output. The main concern when implement this filter is the Overlay Image and Running Text will only display in output1 and dissappear in other output due to wrong placement of filtering. This is become my concern and do some experiment to find solution on how to put carefully of filtering placement.

Syntax:

ffmpeg -i storm_spirit.mp4 -i addies.jpg -filter_complex \

"[1:v]scale=iw/2:ih/2[logo];[0:v][logo]overlay=W-w-5:H-h-5, \

scale=320:-2,drawbox=x=0:y=122:color=yellow@0.4:width=iw:height=30:t=max, \

drawtext=fontfile=/usr/share/fonts/truetype/freefont/FreeSans.ttf:text='This Is Running Text':\

fontcolor=white@1.0:fontsize=16:y=h-line_h-30:x=w/10*mod(t\,10):\

enable=gt(mod(t\,20)\,10),split=3[a][b][c]" \

-map "[a]" -map 0:a -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream \

-map "[b]" -map 0:a -vcodec libx264 -acodec aac -strict -2 -b:v 128k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream2 \

-map "[c]" -map 0:a -vcodec libx264 -acodec aac -strict -2 -b:v 96k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream3

Result, Ovelay Image and Running Text can be seen in each output of streaming.

Pic 2. Overlay Image and Running Text can be implemented in each stream output

Thank you

Other Topics:

How to build NGINX RTMP module, Setup Live Streaming with NGINX RTMP module, Publishing Stream with Open Broadcaster Software (OBS), Create Adaptive Streaming with NGINX RTMP, Implementing Filtergraph in Streaming with NGINX RTMP, How to Implement Running Text in Streaming with NGINX RTMP, How to build OpenSceneGraph with Code::Blocks, How to build OpenSceneGraph with Visual Studio 2010, Building Geometry Model, How to run OpenSceneGraph with Netbean IDE 8.2 C++, Rendering Basic Shapes, Using OSG Node to Load 3D Object Model, Rendering 3D Simulator with OpenSceneGraph, How to compile wxWidgets with Visual Studio 2010

How to Implement Running Text in Streaming with NGINX RTMP

In my previous tutorial, I have explained on How to Build NGINX RTMP, Setup Live Streaming with NGINX RTMP, Create Adaptive Streaming with NGINX RTMP and Implementing Filtergraph in Streaming with NGINX RTMP.  Please read it before start to learn this tutorial.

Running Text is one of the very useful electronic or digital media to convey messages and information can also be used as a means of advertising.

In its development, the display running text now comes not only show a series of posts to walk alone but also able to display images or logos.

Running Text was elected by a lot of people as a means of advertising, as a means of advertising for reasons other than a very beatiful display, running text in itself proved to have an attaction for people around who saw it, as well as know, that the human visual sense be the eyes are very interested in a view that is bright, colorful, striking and others around him. This is the underlying color of the display running text inviting people around her eyes to look at him.

Here is the command on how to create "Hello World" Running Text in streaming

ffmpeg -i storm_spirit.mp4 -filter:v drawtext="fontfile=/usr/share/fonts/truetype/freefont/FreeSans.ttf:text='Hello World':fontcolor=white@1.0:fontsize=16:y=h-line_h-100:x=w/10*mod(t\,10):enable=gt(mod(t\,20)\,10)" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream


Result shown as picture below

Pic 1.  Running Text "Hello World"

This is to show 'Running Text in Streaming with NGINX RTMP'

ffmpeg -i storm_spirit.mp4 -filter:v drawtext="fontfile=/usr/share/fonts/truetype/freefont/FreeSans.ttf:text='Running Text in Streaming with NGINX RTMP':fontcolor=white@1.0:fontsize=16:y=h-line_h-100:x=w/10*mod(t\,10):enable=gt(mod(t\,20)\,10)" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Result shown as below:

Pic 2. Running Text "Running Text in Streaming with NGINX RTMP"

All above sample, Text is running from left to right.

Horizontal movement:

            x=w/10*mod(t\,10)

            where w is the input width
                        t is the time
                       w/10 is the speed of movement (whole width in 10s)
                        t mod 10 is used to repeat every 10s

Enabling:
           enable=gt(mod(t\,20)\,10)
           every 20s show the text animation for 10s after the initial 10s



This is an example Running Text with Background. The command as below

ffmpeg -i /mnt/e/kurento/compile\ NGIX/storm_spirit.mp4 -filter:v "drawbox=y=ih/PHI:color=black@0.4:width=iw:height=30:t=max, drawtext=fontfile=/usr/share/fonts/truetype/freefont/FreeSans.ttf:text='Addiestar Silaban Running Text':fontcolor=white@1.0:fontsize=16:y=h-line_h-115:x=w/10*mod(t\,10):enable=gt(mod(t\,20)\,10)" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Result shown as below

Pic 3. Running Text with Black Background

Don't forget to change the RTMP IP address (red color)
rtmp://192.168.135.128:1935/myapp/mystream  to your NGINX RTMP server IP Address


Thank you




Other Topics:

How to build NGINX RTMP module, Setup Live Streaming with NGINX RTMP module, Publishing Stream with Open Broadcaster Software (OBS), Create Adaptive Streaming with NGINX RTMP, Implementing Filtergraph in Streaming with NGINX RTMP, How to Implement Running Text in Streaming with NGINX RTMP, How to build OpenSceneGraph with Code::Blocks, How to build OpenSceneGraph with Visual Studio 2010, Building Geometry Model, How to run OpenSceneGraph with Netbean IDE 8.2 C++, Rendering Basic Shapes, Using OSG Node to Load 3D Object Model, Rendering 3D Simulator with OpenSceneGraph, How to compile wxWidgets with Visual Studio 2010

Implementing Filtergraph in Streaming with NGINX RTMP

In my previous tutorial, I have explained on How to Build NGINX RTMP, Setup Live Streaming with NGINX RTMP, Create Adaptive Streaming with NGINX RTMP.  Please read it before start to learn this tutorial.

Deinterlace

To prevent flicker and reducing transmission bandwidth, all analog camcorders, VCRs, broadcast television systems use interlaced scan. So, deinterlacing video is in practice the process of converting interlaced video into progressive video.

Please type this command on terminal to implement deinterlace:

ffmpeg -i adam_levine.mp4 -vf "yadif=0:0:0" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Pic 1. Deinterlace result

Turn Video to Black and White

If you need to turn video into black and white then this is the command

ffmpeg -i storm_spirit.mp4 -vf "yadif=0:0:0, hflip, hue=s=0" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Pic 2. Turn Video to Black and White

Split Screen

To make split screen, you can implement with this command

ffmpeg -i storm_spirit.mp4 -s 850x480 -vf "scale=850:240 [inScale]; color=c=black@1.0:s=850x480:r=29.97:d=30.0 [bg]; movie=adam_levine.mp4, scale=850:240 [vid2]; [bg][vid2] overlay=0:0 [basis1]; [basis1][inScale] overlay=0:240" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

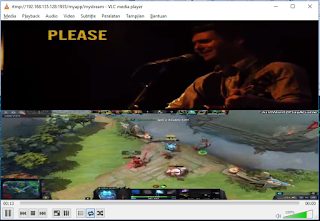

Pic 3. Split Screen

Overlay

To implement overlay image in your stream, you can do with this command

ffmpeg -i adam_levine.mp4 -vf "movie=addies.jpg [over]; [in][over]overlay=main_w-overlay_w-10:main_h-overlay_h-10" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Pic 4. Overlay Image

Picture in Picture (PiP)

This is the way to implement Picture in Picture (PiP). The command as below

ffmpeg -i storm_spirit.mp4 -i adam_levine.mp4 -i Slash.mp4 -filter_complex "[1:v]scale=iw/5:ih/5:flags=lanczos[pip1];[2:v]scale=iw/5:ih/5:flags=lanczos[pip2];[0:v][pip1]overlay=main_w-overlay_w-100:main_h-overlay_h-100[bg1];[bg1][pip2]overlay=main_w-overlay_w*4-100:main_h-overlay_h-100" -vcodec libx264 -acodec aac -strict -2 -b:v 256k -b:a 32k -f flv rtmp://192.168.135.128:1935/myapp/mystream

Pic 5. Picture in Picture (PiP)

Please change red color IP address rtmp://192.168.135.128:1935/myapp/mystream to your NGINX RTMP IP address

Thank you




Other Topics:

How to build NGINX RTMP module, Setup Live Streaming with NGINX RTMP module, Publishing Stream with Open Broadcaster Software (OBS), Create Adaptive Streaming with NGINX RTMP, Implementing Filtergraph in Streaming with NGINX RTMP, How to Implement Running Text in Streaming with NGINX RTMP, How to build OpenSceneGraph with Code::Blocks, How to build OpenSceneGraph with Visual Studio 2010, Building Geometry Model, How to run OpenSceneGraph with Netbean IDE 8.2 C++, Rendering Basic Shapes, Using OSG Node to Load 3D Object Model, Rendering 3D Simulator with OpenSceneGraph, How to compile wxWidgets with Visual Studio 2010

Create Adaptive Streaming with NGINX RTMP

In my previous articles How to build NGINX RTMP module, Setup Live Streaming with NGINX RTMP module and Publishing Stream with Open Broadcaster Software (OBS), I have examined how to stream a video file with FFmpeg encoder without any conversion. The streaming output is the same as the input sources.

For converting live streams into several streams resolution for adaptive streaming purpose, we need to make sure server have enough CPU for the workload. This is to prevent live streaming from continuous delays and even worst, server become unresponsive and hang. To prevent this case happen then we need to think about the resolution that will be offering for adaptive streaming. Normally, there are 4 variants that we can use for adaptive streaming consist of

1. 240p Low Definition stream at 288kbps

2. 480p Standard Definition stream at 448kbps

3. 540p Standard Definition stream at 1152kbps

4. 720p High Definition stream at 2048kbps

You may refer to youtube help for live encoder settings, bitrates and resolutions

Configure nginx.conf for Adaptive Live Streaming

Here is my own configuration (simple configuration). In this configuration, I used resolution 240p, 480p, 720p.

#user  nobody;

worker_processes  1;

error_log  logs/error.log debug;

events {

    worker_connections  1024;

}

http {

    include       mime.types;

    default_type  application/octet-stream;

    sendfile        on;

    keepalive_timeout  65;

    server {

        listen       8080;

        server_name  localhost;



        # rtmp stat

        location /stat {

            rtmp_stat all;

            rtmp_stat_stylesheet stat.xsl;

        }

        location /stat.xsl {

            # you can move stat.xsl to a different location

            # in my case, i used /home/addies/build/nginx-rtmp-module

            root /home/addies/build/nginx-rtmp-module;

        }

        location /hls {

                add_header 'Cache-Control' 'no-cache';

                add_header 'Access-Control-Allow-Origin' '*' always;

                add_header 'Access-Control-Expose-Headers' 'Content-Length,Content-Range';

                add_header 'Access-Control-Allow-Headers' 'Range';

                if ($request_method = 'OPTIONS') {

                       add_header 'Access-Control-Allow-Origin' '*';

                       add_header 'Access-Control-Allow-Headers' 'Range';

                       add_header 'Access-Control-Max-Age' 1728000;

                       add_header 'Content-Type' 'text/plain charset=UTF-8';

                       add_header 'Content-Length' 0;

                       return 204;

                }

                #serve HLS fragments

                types {

                       application/dash+xml mpd;

                       application/vnd.apple.mpegurl m3u8;

                       video/mp2t ts;

                }

                root /home/addies/live/;

                add_header Cache-Control no-cache;

        }

        # rtmp control

        location /control {

            rtmp_control all;

        }

        error_page   500 502 503 504  /50x.html;

        location = /50x.html {

            root   html;

        }

    }

}

rtmp {

    server {

        listen 1935;

        ping 30s;

        notify_method get;

        application live {

            live on;

            exec_pull ffmpeg -re -i http://your_ip_source/$app/$name

 -vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 1920k -b:a 128k -vf "scale=1280:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/show/${name}_720

-vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 1024k -b:a 128k -vf "scale=854:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/show/${name}_480

 -vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 300k -b:a 96k -vf "scale=426:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/show/${name}_240;

        }

       application show {

            live on;

            hls on;

            hls_path /home/addies/live/hls;

            hls_nested on;

            record off;



            # Instruct clients to adjust resolution according to bandwidth

            hls_variant _720 BANDWIDTH=2048000; # High bitrate, HD 720p resolution

            hls_variant _480 BANDWIDTH=448000; # Medium bitrate, SD resolution

            hls_variant _240 BANDWIDTH=288000; # Low bitrate, sub-SD resolution

        }

    }

}

After finished the configuration then you need to create folder for hls files that created by nginx
cd ~
mkdir live
cd ~/live
mkdir hls
cd ~
chmod -R 755 /home/addies/live

To test your configuration then you need to open linux terminal and type command

ffmpeg -re -i /home/addies/stream/any_files_for_testing.mp4 -vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 1920k -b:a 128k -vf "scale=1280:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/live/any_name  -vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 1024k -b:a 128k -vf "scale=854:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/live/any_name  -vcodec libx264 -threads 0 -vprofile baseline -acodec aac -strict -2 -b:v 300k -b:a 96k -vf "scale=426:trunc(ow/a/2)*2" -tune zerolatency -preset veryfast -crf 23 -f flv rtmp://localhost:1935/live/any_name

Next, you can play from vlc player by inputing the stream url:

http://your_server/hls/any_name.m3u8
